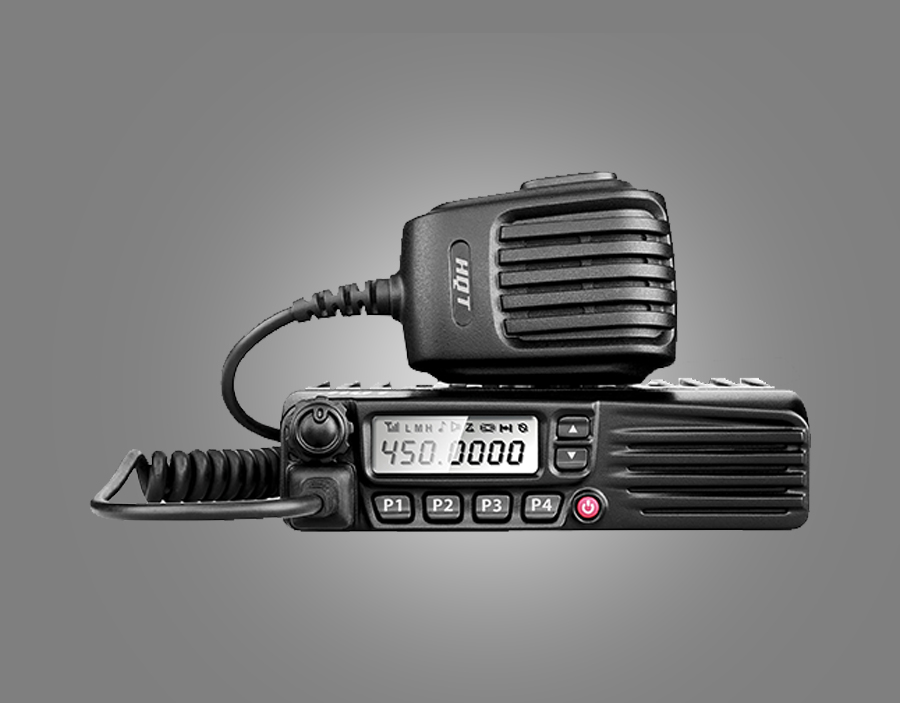

HQT HIGH-END ANALOG SERIES MOBILE RADIO TM-1000

HQT TM-1000 is a professional mobile radio which is developed with the latest technology and craftsmanship. With proper care, TM-1000 can provide years of trouble-free operation. Compared with traditional two-way radio, it has a bigger transmit power and it, therefore, has a bigger cover range. It can be installed indoors, on cars or some other places which are necessary.
  • 5W/25W/50W(60W) Transmit Power;
  • 512 Channels, 64 Zones;
  • Remote Kill/Stun/Revive;
  • PTT ID Encode/Decode;
  • Support DTMF, 2-Tone, 5-Tone, QDC1200 (Compatible with MDC 1200);
  • Second-development Interface for GPS and Voice Encryption;
  • Remote Control Mic (optional).
TI OMAP SERIES is recommended for customized needs and requirements.

Please contact our sales consultants for more product information. Get Support >>

5W/25W/50W (60W) Transmit Power
Users can talk in a large range with such transmit power.
512 Channels Capacity
512 channels can fulfill users' requirements and make the communication between different groups of people much easier.
Remote Kill/Stun/Revive
TM-1000 provides enhanced security to stop unauthorized users by remote inhibition of either transmission or both transmission and reception. The disabled radios will return to normal operation when receiving a revive signal.
PTT ID Encode/Decode
TM-1000 provides 5 signaling to encode/decode identification of radio to control center or partners through this function. It simplifies the way of communication and management.
Text
TM-1000 also allows users to text through the mobile radio.
Built-in Scrambler
Maintaining private and secure communications is increasingly important, with potentially sensitive information behind. The TM-1000 scrambler feature provides enhanced security for users' important public safety and private security communications.
Horn Alert
When receiving DTMF, 2-Tone, 5-Tone, or QDC1200 signaling, the TM-1000 mobile radio can remotely control other electronic equipments on vehicle.
Squelch Tail Elimination
This function will minimize the annoying audio outputs that occur at the receiver during a transmission.
Lone Worker
In order to make sure that users can be safe while working alone, users can set a limited period by software. The radio will alarm automatically if the preset time expires. Users can press the safe key to stop the alarm.
Emergency Alert
In case of emergencies or accidents, this feature allows users to transmit signals discreetly to the control center or a predefined person for emergency help.
CTCSS/CDCSS
Users can select CTCSS/CDCSS codes via the programmed function key. Each user’s setting can be assigned with a customized name for convenient operation.
Other Functions
Various Emergency Alert, Private/Group Call, Voice Encryption, TOT etc.
General
Frequency Range VHF: 66-88MHz; 136-174MHz
UHF: 400-470MHz; 450-520MHz
Channel Capacity 512
Zone Capacity 64
Channel Spacing 25.0kHz / 12.5kHz
Operating Voltage 13.8V DC
Frequency Stability ±1.5ppm
Operating Temperature -25℃ ~ +55℃
Antenna Impedance 50Ω
Dimensions (L×W×D) 172×151×40mm
Weight 1000g
Receiver
Sensitivity 0.22μV(25kHz) /0.25μV(12.5kHz)
Selectivity 60dB @12.5kHz / 70dB @25kHz
Intermodulation ≥65dB
Spurious Response Rejection ≥70dB
S/N 35dB@12.5kHz / 40dB@25kHz
Internal Audio Power Output (Rated) 4W
External Audio Power Output (Rated) 8W
Transmitter
RF Power Output

UHF High Power: 45W / Middle Power:25W / Low Power: 5W
VHF High Power: 50W / Middle Power:25W / Low Power: 5W

Modulation 16KΦF3E / 8KΦF3E
Modulation Limiting ≤2.5kHz@12.5kHz / ≤5kHz@25kHz
Audio Distortion ≤5%
FM Noise 35dB@12.5kHz/40dB@25kHz
Spurious and Harmonics ≤-36dBm (<1GHz) / -30dBm (>1GHz)

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.


Accessory List

Standard Accessories
Microphone Hanger Power Cable Fixed Bracket Mobile Microphone Combination Screw Self-tapping Screw
Optional Accessories
Programming Cable GPS Box Sucker Antenna
