HQT MID-END ANALOG SERIES Q3

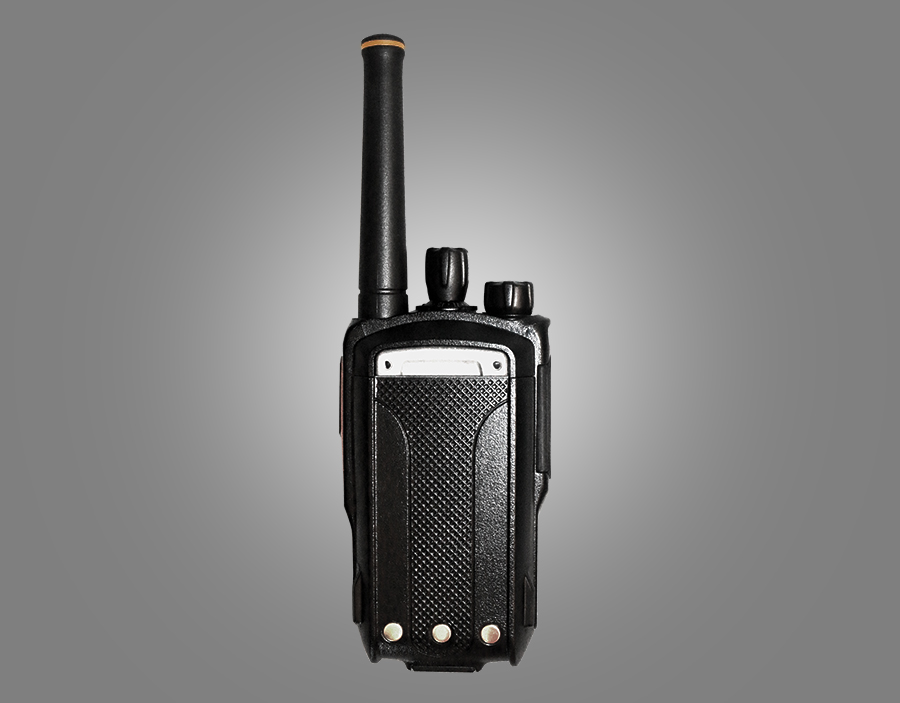

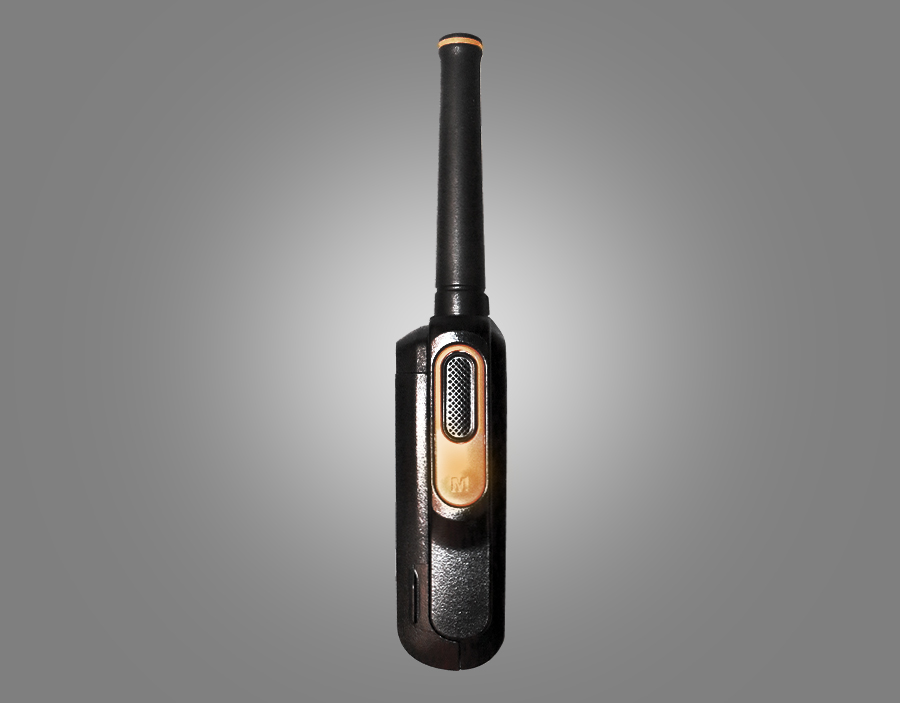

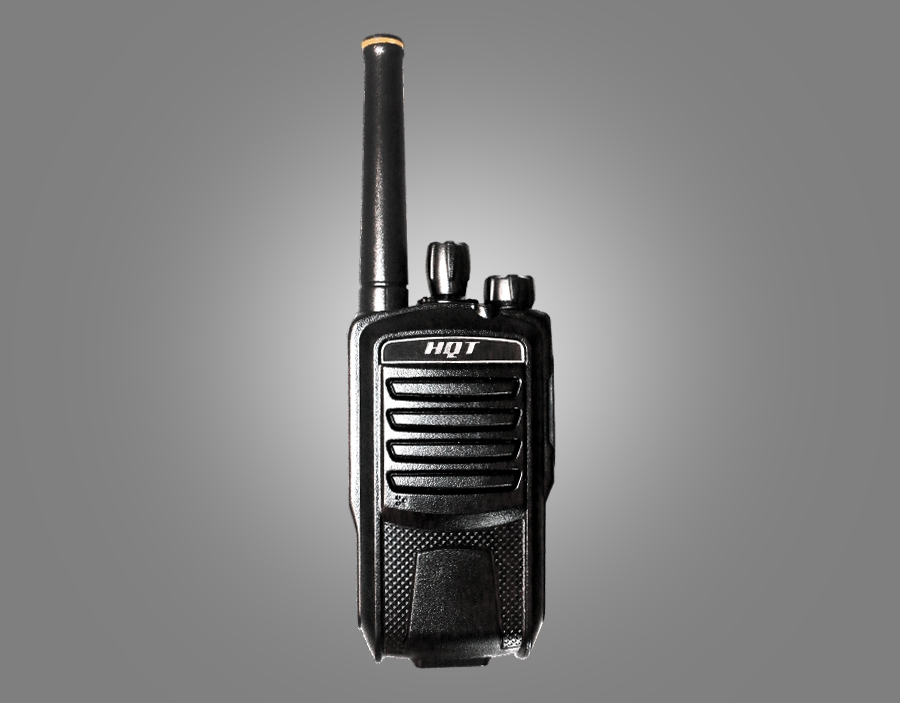

HQT Q3 is a compact-outlined business portable radio with fashionable design, multiple functions, wide frequency range and stable performance. Q3 is one of the most cost-effective models and a convenient communication facility for users working in hotels, entertainment places and property security.
  • VOX;
  • Monitor;
  • Voice Prompts;
  • Emergency Alert;
  • Auto Battery Save;
  • High/Low Power Switch;
  • Battery Power Indication;
  • Squelch Tail Elimination.
TI OMAP SERIES is recommended for customized needs and requirements.

Please contact our sales consultants for more product information. Get Support >>

Voice Prompts
This function is designed for users working in dark environment, it enables radio to report current channel when the corresponding function key is pressed.
Monitor
This feature enables users to hear weak signals. User can adjust volume by pressing MONI key when no signals are received.
Auto Battery Save
The radio automatically enters battery save mode when no signal is transmitted or received or no key is pressed in 12 seconds.
Battery Power Indication
The radio will report current battery power when the corresponding function key is pressed. It also reminds users to replace or charge the battery if the battery power is low.
High/Low Power Switch
The radio can be switched between low power and high power. To save power, users can switch it to low power mode when talk distance is short.
Emergency Alert
Press the preset emergency key to emit an emergency alarm or send ENI or background noise to the pre-defined person
VOX
Hands-free operation is available when VOX function is turned ON.
PTT ID Encode (DTMF)
It provides identification of radio to control center or partners through this function. It simplifies the way of communication and management.
Squelch Tail Elimination
The function will minimize the annoying audio outputs that occur at the receiver during a transmission.
25.0 kHz/12.5 kHz Switch
Different channel spacing 25.0kHz /12.5kHz are optional to comply with the regulations of different countries.
General
Frequency Range VHF: 136-174MHz
UHF: 400-470MHz; 450-520MHz
Channel Capacity 16 (15+S)
Channel Spacing 12.5kHz / 25kHz
Frequency Stability ±1.5ppm
Operating Temperature -25℃ ~ +55℃
Antenna Impedance 50Ω
Operating Voltage 7.5V
Dimensions (H×W×D) 105×62×35mm
Weight (With Antenna & Battery) 233g
Battery 1500mAh (Li-ion Battery)
Receiver
Sensitivity 0.15μV / 0.18μV
Adjacent Channel Selectivity 70dB / 60dB
Intermodulation Rejection 65dB
Spurious Response Rejection 70dB
S/N 45dB / 40dB
Rated Audio Power Output 1W
Rated Audio Distortion ≤5%
Transmitter
RF Power (H/L) UHF: 4W/1W VHF: 5W/1W
Modulation Type 16KΦF3E / 8KΦF3E
Modulation Limiting ≤5kHz/2.5kHz
FM Distortion ≤5%
Residual FM -45dB / -40dB
Adjacent Channel Power -70dB / -60dB
Spurious and Harmonics ≤-36dBm

Accessory List

Standard Accessories
Antenna Li-ion Battery Charge Adapter Intelligent Charger Belt Clip Hand Strap
Optional Accessories
Earpiece Mic Remote Speaker Microphone Programming Cable
