HQT Analog Series TH-2000
TH-2000
TH-2000
TH-2000
TH-2000

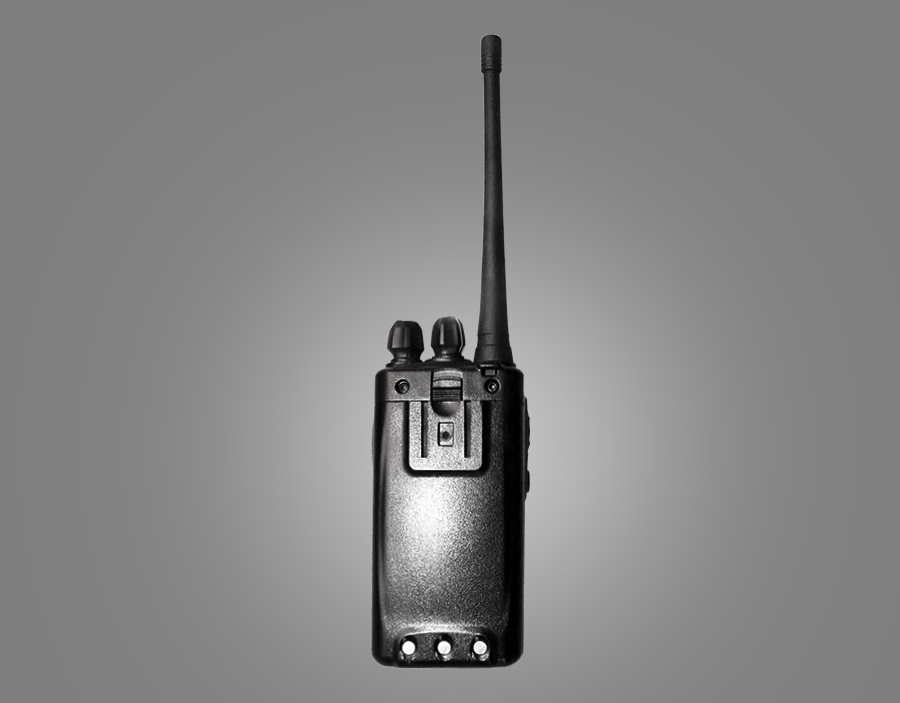

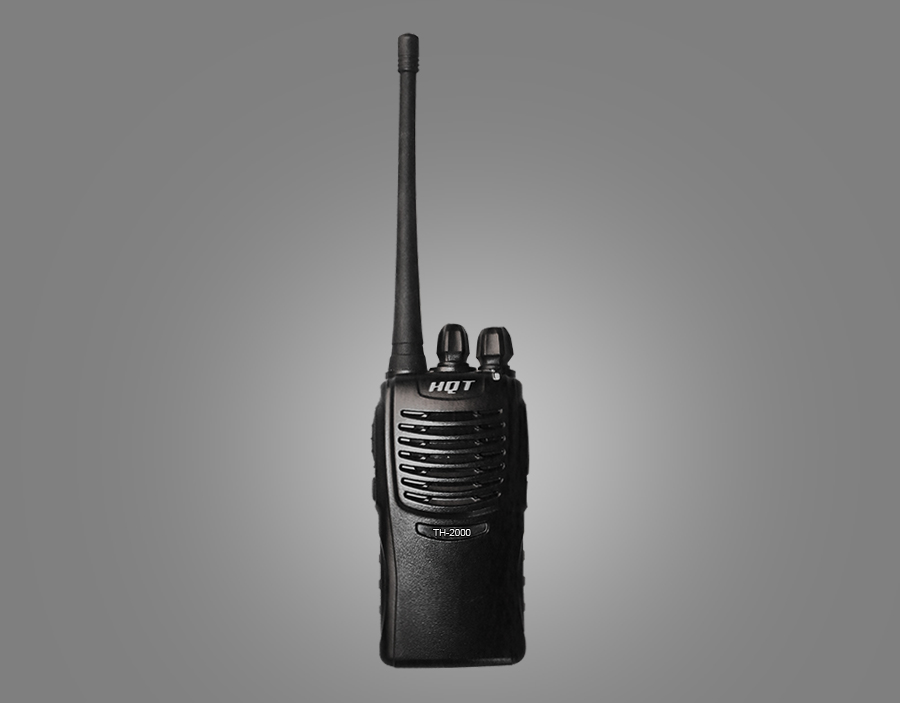

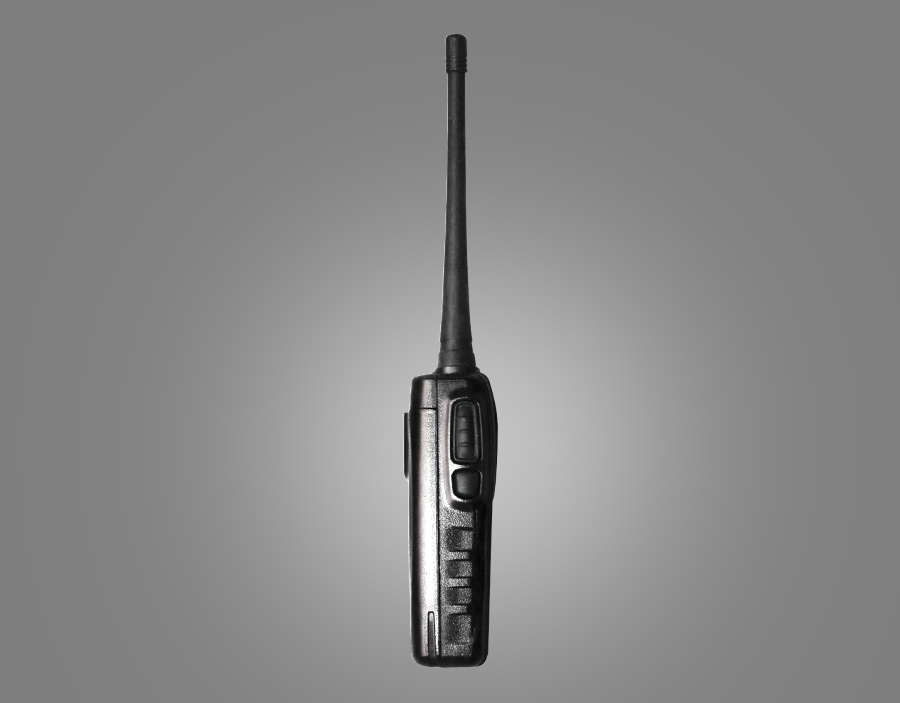

HQT MID-END ANALOG SERIES TH-2000

HQT TH-2000 is a cost-effective portable radio with ergonomic design, reliable quality, stable performance, crisp voice and long talk time. As it has passed a series of tests, including shake proof, anti-high and low temperature, rain-resistant and dust proof, reached IP54 standard, it is suitable for service industry, property management, logistics, construction industry and etc.
  • Voice Prompts;
  • PTT ID Encode;
  • Emergency Alert;
  • Programmable Key;
  • CTCSS/CDCSS/2-Tone;
  • Announce Battery Power;
  • High/Low Power Switch;
  • Squelch Tail Elimination.
TI OMAP SERIES is recommended for customized needs and requirements.

Please contact our sales consultants for more product information. Get Support >>

Programmable Key
The key can be programmed as normal key or long & short key by PC software. And the key can be programmed with these functions: monitor, monitor temporarily, squelch off, squelch off temporarily, VOX, announce battery power and emergency alert.
Voice Prompts
This feature enables radio to report current channel, scan status and VOX status when users press corresponding function key. It brings convenience to users in special applications, such as working in the darkness.
PTT ID Encode
It provides identification of radio to control center, which is convenient for communication management.
CTCSS / CDCSS / 2-Tone
Unique CTCSS /CDCSS are useful to setup group users to avoid unwanted conversations on the same channel. The 2-Tone function is assigned based on per channel, the incoming message is signaled with audio and indicator flashing at the same time.
Emergency Alert
Press the preset emergency key to emit emergency alarm, or send ENI or background noise to pre-defined person or dispatch center.
Announce Battery Power
Voice prompt reminds users to replace or charge the battery in time when the battery power is low.
High/Low Power Switch
The radio can be switched between low power and high power. To save power, users can switch it to lower power mode when talk distance is short.
VOX
Hands-free operation is available when VOX function is turned ON.
25.0 kHz/ 12.5 kHz Switch
Different channel spacing 25.0kHz /12.5kHz are optional to comply with the regulations of different countries.
TOT
The feature allows for more efficient use of channels by limiting the amount of time of each transmission. Also, it effectively avoids radio damage because of long-time transmission.
Busy Channel Lockout (BCL)
BCL is used to protect the on-going conversation from unwanted interference.
Squelch (1~9 selectable)
It can minimize interference from undesired weak signals and enable weak signals to be heard.
Talk Confirmation Tone
Release PTT when the conversation is over and the receiver will hear the roger tone.
Monitor
To hear a weak signal, press MONI key. And it helps adjust volume when no signal is received.
Squelch Tail Elimination
The function will minimize the annoying audio outputs that occur at the receiver on completion of a transmission.
Scan
This feature enables radio to scan every channel in scanning list by pressing side key to activate scanning. In this way, the user can detect which channel is used by partners, and then transmit signals to start communicating.
Wired Clone
To quickly set the parameters on a radio, you can clone the radio data from another radio with the supplied data cable, saving the time of parameter setting.
PC Programming
Frequency and various features can be set by PC programming software.
General
Frequency Range VHF: 136-174MHz
UHF: 400-470MHz; 470-512MHz; 350-390MHz
Channel Capacity 16 (15+S)
Channel Spacing 25.0kHz / 12.5kHz
Frequency Stability ±1.5ppm
Operating Temperature -25℃ ~ +55℃
Antenna Impedance 50Ω
Operating Voltage 7.4V
Dimensions (H×W×D) 111×59×37mm
Weight (With Antenna & Battery) 232g
Battery 1300mAh / 1500mAh
Receiver
Sensitivity 0.20μV(25kHz) / 0.22μV(12.5kHz)
Adjacent Channel Selectivity 60dB@12.5kHz / 70dB@25kHz
Intermodulation Rejection 65dB
Spurious Response Rejection 70dB
S/N 40dB@12.5kHz / 45dB@25kHz
Rated Audio Power Output 600mW
Rated Audio Distortion ≤5%
Transmitter
RF Power (H/L) UHF High Power: 4W/ Low Power: 1W
VHF High Power: 5W/ Low Power: 1W
Modulation Type 16KΦF3E / 8KΦF3E
Modulation Limiting 2.5kHz @ 12.5kHz
5kHz @ 25kHz
FM Distortion ≤5%
Residual FM 40dB @ 12.5kHz / 45dB @25kHz
Adjacent Channel Power -60dB
Spurious and Harmonics ≤-36dBm(<1GHz)/-30dBm(>1GHz)

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.


Accessory List

Standard Accessories
Antenna Battery Charge Adapter Desktop Charger Belt Clip Hand Strap
Optional Accessories
Earphone Remote Microphone Programming Cable clone Cable
