HQT Analog Series TH-368

HQT LOW-END ANALOG SERIES TH-368

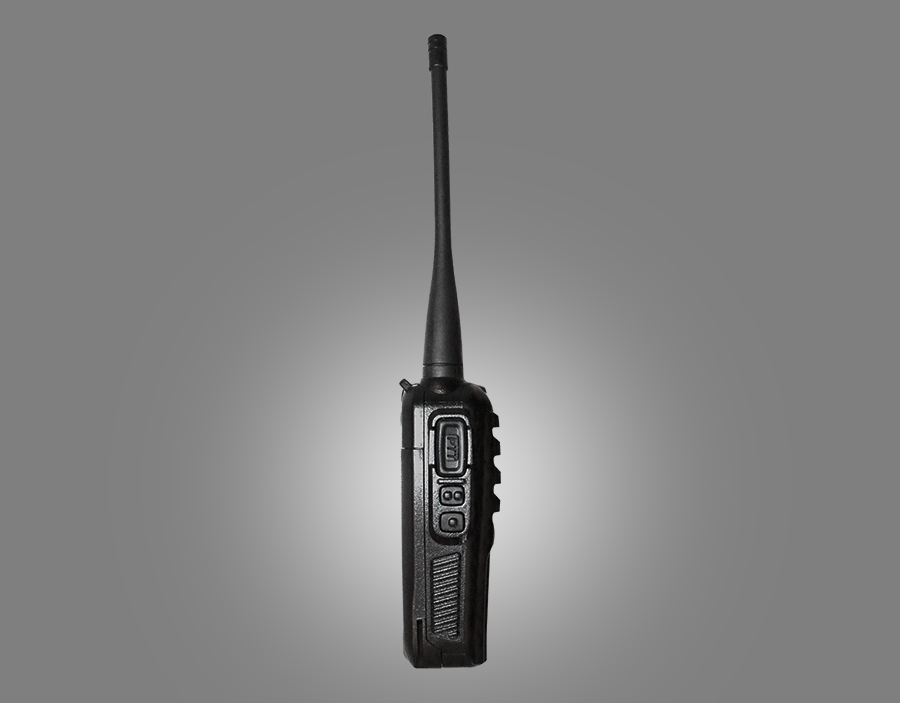

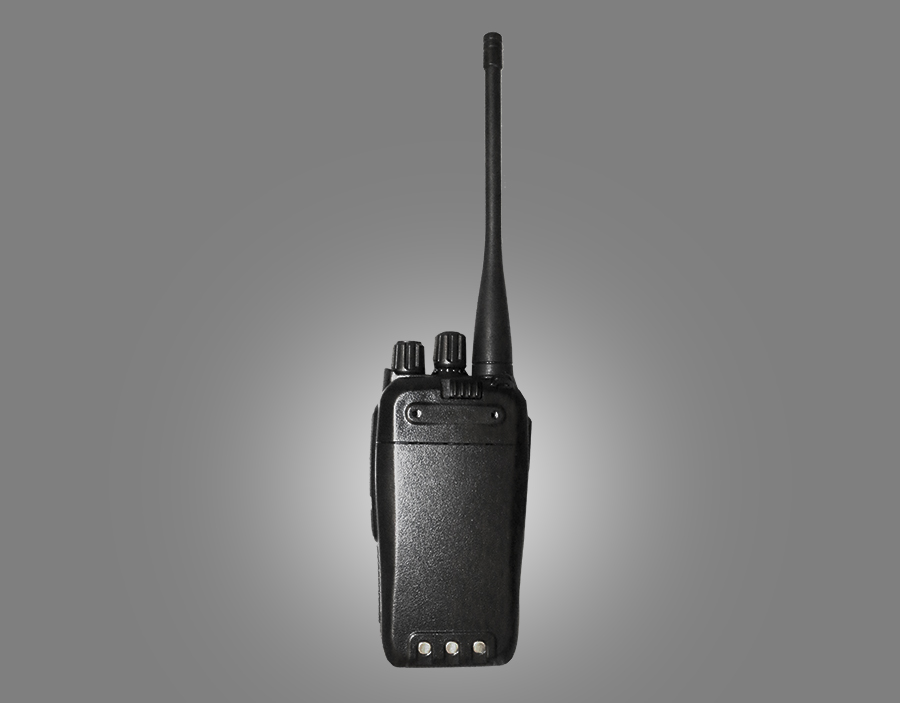

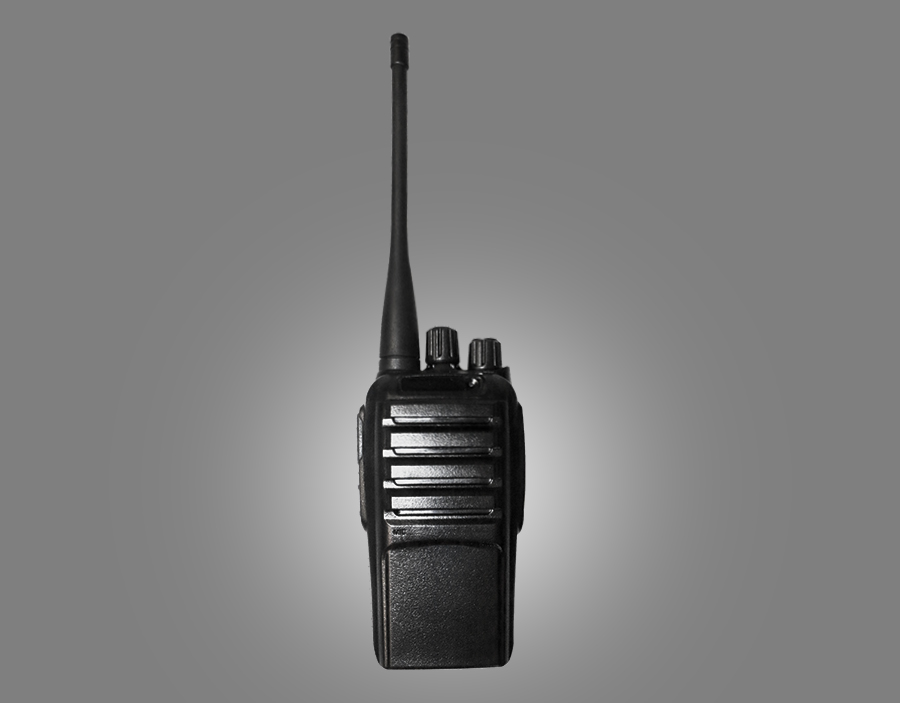

HQT TH-368 is a professional two-way radio. The advanced audio process technique and ergonomic design make it so different from others. Users will get used to it really soon and be surprised by its powerful audio process ability. Besides above features, TH-368 also provides a few higher level functions, such as long standby period, VOX, power switch, etc.

VOX;
Scan;
DTMF;
CTCSS/CDCSS;
Emergency Alert;
Programmable Keys;
High/Low Power Switch;
Busy Channel Lockout (BCL).

TI OMAP SERIES is recommended for customized needs and requirements.

Please contact our sales consultants for more product information. Get Support >>

VOX
This function allows radio to transmit without PTT key being pressed.
CTCSS / CDCSS
Unique CTCSS / CDCSS encode and decode are useful for group users to avoid unwanted conversation on the same channel.
Emergency Alert
TH-368 emits emergency alarm or sends ENI to predefined person when users are in an emergency situation.
Busy Channel Lockout (BCL)
BCL is used to protect the on-going conversation from unwanted interference. It is a good way to avoid unnecessary interference.
High/Low Power Switch
This function allows radio to be switched between high power and low power. Low power can satisfy small range communication. It results in a longer standby period.
Other Functions Available:
Voice Prompts
DTMF
Scan
25 kHz/12.5kHz Switch
Programmable Keys

General
Frequency Range	VHF: 136-174MHz UHF: 350-390MHz; 400-470MHz; 450-520MHz
Channel Capacity	16
Channel Spacing	25kHz/12.5kHz
Frequency Stability	±1.5ppm
Operating Temperature	-25℃ ~ +55℃
Antenna Impedance	50Ω
Operating Voltage	7.5V
Dimensions (H×W×D)	116×56×34mm
Weight (With Antenna & Battery)	203g
Battery	1500mAh
Receiver
Sensitivity	0.20μV(25kHz) / 0.22μV(12.5kHz)
Adjacent Channel Selectivity	60dB@12.5kHz / 70dB@25kHz
Intermodulation Rejection	65dB
Conducted Spurious Emission	<-57dB
S/N	40dB@12.5kHz / 45dB@25kHz
Rated Audio Power Output	700mW
Rated Audio Distortion	≤5%
Transmitter
RF Power (H/L)	UHF High Power: 4W/ Low Power: 1W VHF High Power: 5W/ Low Power: 1W
Modulation Type	16KΦF3E / 8KΦF3E
Modulation Limiting	≤2.5kHz @ 12.5kHz ≤5kHz @ 25kHz
FM Distortion	≤5%
Residual FM	40dB@12.5kHz / 45dB@25kHz
Adjacent Channel Power	60dB@12.5kHz / 70dB@25kHz
Spurious and Harmonics	≤-36dBm(<1GHz)/-30dBm(>1GHz)

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.

Accessory List

Standard Accessories
Antenna	Battery	Charge Adapter	Desktop Charger	Belt Clip	Hand Strap
Optional Accessories
Earphone	Remote Microphone		Programming Cable		Clone Cable
