HQT IC Platform Series DH-3960

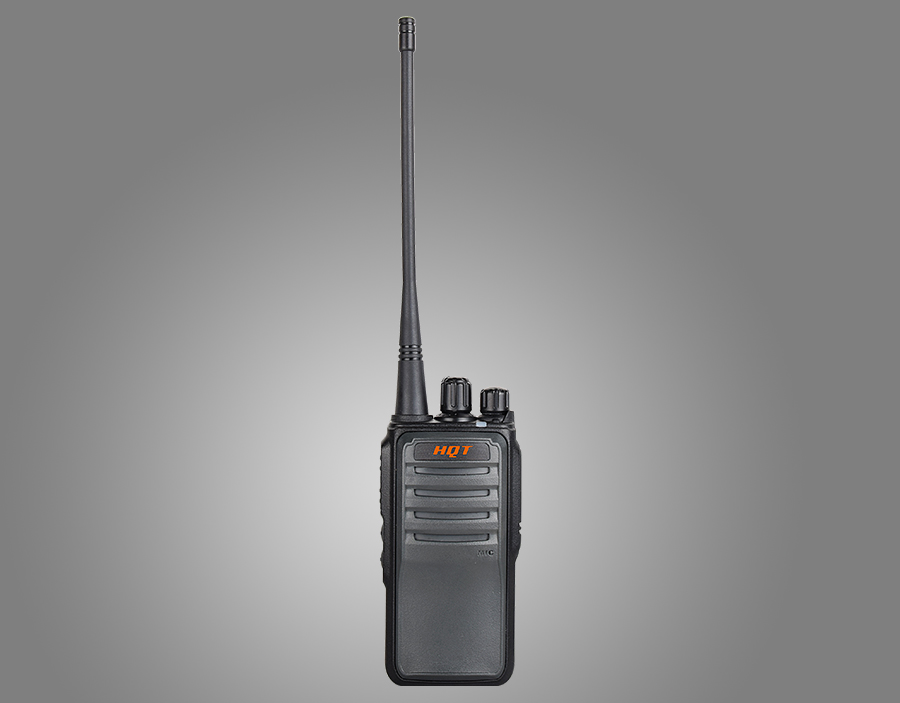

HQT DH-3960 is a professional two-way radio with fashionable design, multi-functions, wide frequency range and stable performance. It is compliant with IP54 standard.
  • VOX;
  • Upgradeable Software;
  • Dual Modes (Analog+ Digital);
  • Signaling: DTMF Encode, QT/DQT;
DH-3960 is a mid-end digital portable radio with integrated chip, its customization is limited and it is applied in the commercial markets. If you have customized needs and requirements, HQT DH-9800/9100 is recommended.

Please contact our sales consultants for more product information. Get Support >>

Dual Modes (Analog + Digital)

DH-3960 can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition.

High Cost Performance

HQT DH-3960 is a professional digital portable radio which is reliable and safe. Its ergonomic design makes it easy to carry and hide.

Maximum Efficiency

DH-3960 adopts TDMA technology which ensures high-efficient frequency coverage and control mode of RF power, and its battery life is 40% longer when it is operated in digital mode than that in analog mode.

Better and Clearer Communication

DH-3960 adopts digital technologies which effectively control background noise and squelch during voice transmission, so that it can transmit clear and desired voice.

Secure Communication

DH-3960 can control the selection of RX contact or RX group of voice in digital mode. Every DH-3980 has a unique ID, which enables users to do one-to-one conversation which will not be received by others. Besides, it supports digital voice encryption in digital mode.

Voice Prompts;
Channel Scan;
Emergency Alarm;
Programmable Key;
TOT (Time Out Timer);
Upgradeable Software;
Dual Modes (Analog+ Digital);
Signaling: DTMF Encode, QT/DQT;
Voice Call Types: Private Call, Group Call and All Call;
Radio Disable, Radio Enable, One Touch Call, Remote Monitor.


Frequency Range VHF: 136-174MHz
UHF: 400-470MHz
Channel Capacity/Zone  Capacity 1024(64 Zones×16 Channels)
Channel Spacing 25kHz/12.5kHz
Battery 2200mAh
Dust & Water Protection IP54
Operating Temperature -25℃~+55℃
Voltage 7.5V
Dimensions (H×W×D)
Sensitivity Analog SINAD: 0.22μV/Digital 5%BER:0.22μV
Adjacent Channel Selectivity 60dB@12.5kHz / 70dB@25kHz
Spurious Response Rejection 70dB
Hum and Noise -40dB@12.5kHz /-45dB@25kHz
Conducted Spurious Emission ≤-57dBm
Audio Response +1~-3dB
Audio Power Output 700mW(Max)
RF Power UHF High Power: 4W /Low Power: 1W
VHF High Power:5W /Low Power:1W
Modulation Limiting   ≤2.5kHz @ 12.5kHz
≤5kHz @ 25kHz
Conducted/Radiated Emission ≤-36dBm(<1GHz) / -30dBm(>1GHz)
Adjacent Channel Power 60dB @ 12.5kHz/70dB @ 25kHz
Audio Response +1~-3dB
Audio Distortion ≤3%
Frequency Stability ±1.5ppm
FM Modulation 11KΦF3E @ 12.5kHz
16KΦF3E @ 25kHz
4FSK Digital Modulation 12.5kHz Data: 7K60F1D and 7K60FXD
12.5kHz Voice: 7K60F1E and 7K60FXE
12.5kHz Voice&Data: 7K60F1W
Digital Vocoder Type AMBE+2TM
Digital Protocol ETSI TS102 361-1.-2.-3

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.

Accessory List

Standard Accessories
Antenna Li-ion Battery Charge Adapter Desktop Charger Belt Clip Hand Strap
Optional Accessories
Earphone 2600mAh Battery Remote Microphone Programming Cable Leather Case
