HQT IC Platform Series DH-6000S

IC PLATFORM SERIES DIGITAL RADIO DH-6000S

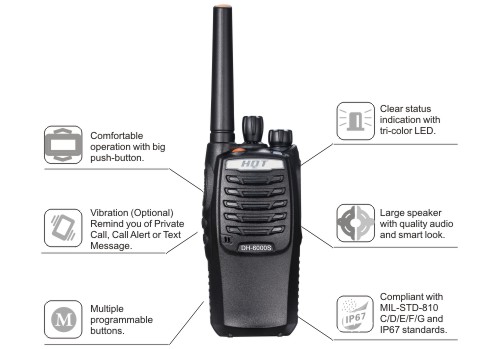

As a product built to the DMR standard, HQT DH-6000S, commercial digital portable radio, is gifted with ergonomic design, all-round digital functions and remarkable quality to refresh your experience and enable you to be responsive to critical situations.
DH-6000S is a mid-end digital portable radio with integrated chip, its customization is limited and it is applied in the commercial markets. If you have customized needs and requirements, HQT DH-9800/9100 is recommended.

Please contact our sales consultants for more product information. Get Support >>

Dual Modes (Analog + Digital)
DH-6000S can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition.
Versatile Voice Calls
Intelligent signaling of DH-6000S supports various voice call types, including Private Call, Group Call, All Call and Emergency Call.
Vibrate (Optional)
This feature is helpful in reminding you of the reception of any Private Call, Call Alert or Text Message under noisy or low-volume conditions.
Various Analog Signaling Types
DH-6000S supports various analog signaling (DTMF Encode, 2-Tone, 5-Tone), and provides higher function expansion capacity.
Advanced Feature (Optional)
DH-6000S supports an optional advanced feature: Man Down.
Secure Communication
DH-6000S provides high-level digital encryption utilizing advanced 128-bit encryption algorithm; In analog mode, it also provides Scrambler feature (Selectable).
Upgradeable Software
With this capability, you can enjoy further features without the need to buy a new radio.

General
Frequency Range	VHF: 136-174MHz UHF: 350-390MHz; 400-470MHz; 450-520MHz
Channel Capacity	1024(64 Zones×16 Channels)
Channel Spacing	12.5kHz (Digital) 25/12.5kHz (Analog)
Operating Voltage	7.4V(Rated)
Battery	1600mAh/2600mAh(Optional)
Battery Life (5-5-90 Duty Cycle, High TX Power)	Analog: Above 11 Hours Digital: Above 16 Hours
Frequency Stability	±1.5ppm
Antenna Impedance	50Ω
Dimensions (H×W×D)	118×55×34mm
Weight	252g(With 1600mAh Battery)
Receiver
Sensitivity (Analog)	0.22μV (25kHz) 0.25μV (12.5kHz)
Sensitivity (Digital)	0.25μV/BER 5%
Selectivity	60dB @ 12.5kHz / 70dB @ 25kHz
Intermodulation	65dB
S/N	40dB @ 12.5kHz / 45dB @ 25kHz
Rated Audio Power Output	1.5W
Rated Audio Distortion	≤5%
Audio Response	+1~-3dB
Conducted Spurious Emission	<-57dBm
Transmitter
RF Power Output	UHF High Power: 4W / Low Power: 1W VHF High Power: 5W / Low Power: 1W
FM Modulation	11KΦF3E @ 12.5kHz 16KΦF3E @ 25kHz
4FSK Digital Modulation	12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission	≤-36dBm(<1GHz) / -30dBm(>1GHz)
Modulation Limiting	≤2.5kHz @ 12.5kHz ≤5kHz @ 25kHz
FM Noise	40dB @ 12.5kHz / 45dB @25kHz
Adjacent Channel Power	60dB @ 12.5kHz / 70dB @25kHz
Audio Distortion	≤3%
Digital Vocoder Type	AMBE3000+
Digital Protocol	ETSI-TS102 361-1.-2.-3
Environmental Specifications
Operating Temperature	-30℃ ~ +60℃
Storage Temperature	-40℃ ~ +85℃
ESD	IEC 61000-4-2 (Level 4)/8kV (Contact)/15kV (Air)
U.S. Military Standard	MIL-STD-810 C/D/E/F/G
Dust & Water Intrusion	IP67 Standard
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration	Per MIL-STD-810 C/D/E/F/G Standard

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.

Accessory List

Standard Accessories
Antenna	Battery	Charge Adapter	Desktop Charger	Belt Clip	Hand Strap
Optional Accessories
Earphone	2600mAh Battery	Remote Microphone	Programming Cable		Leather Case
