HQT TI OMAP SERIES DIGITAL PORTABLE RADIO DH-9800

DH-9800

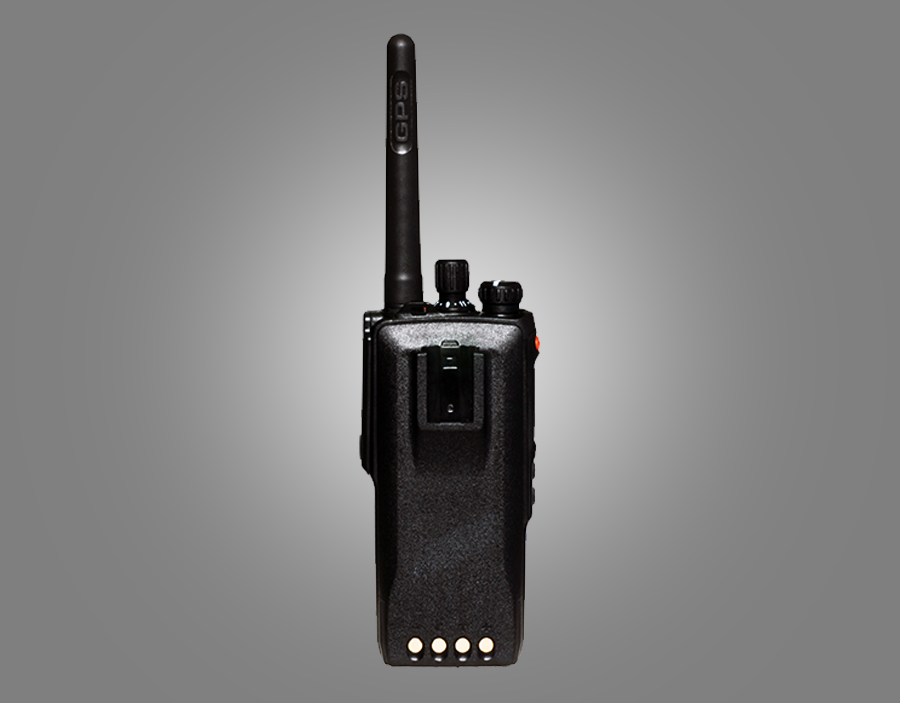

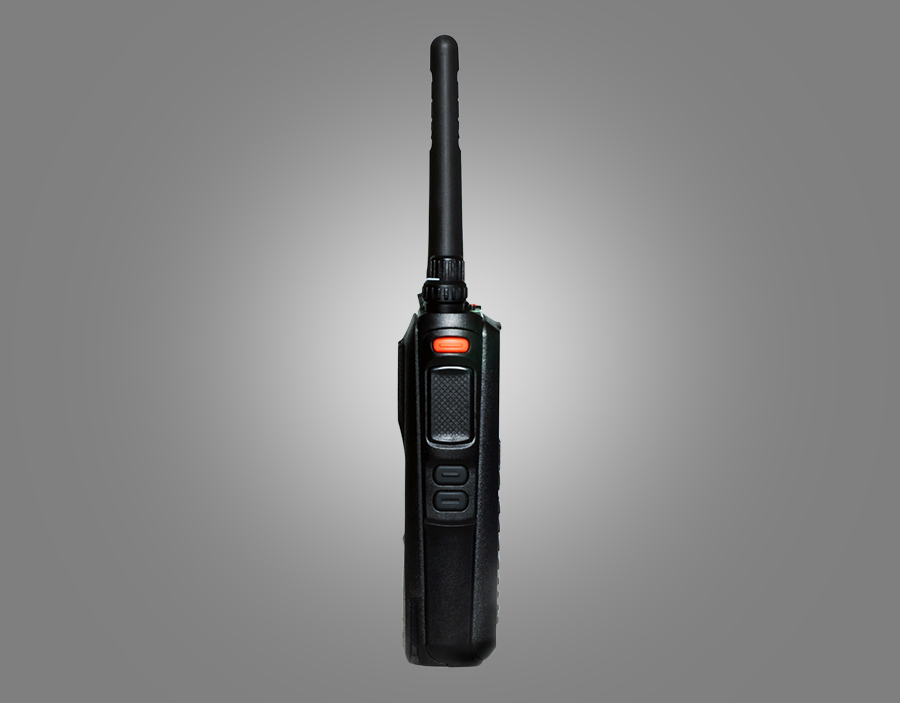

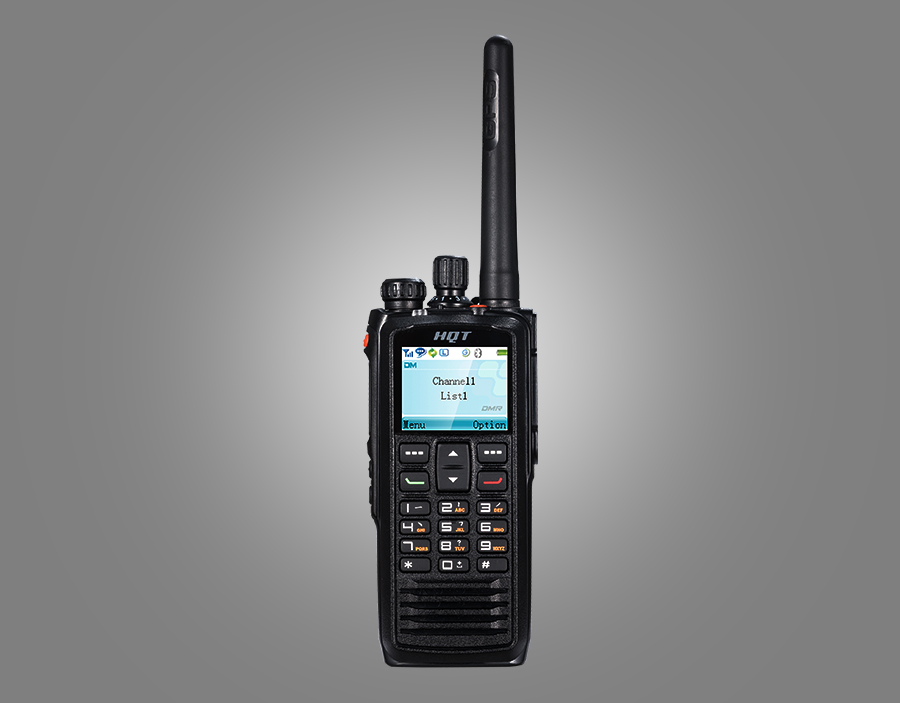

HQT DH-9800, a high-end digital portable radio built to DMR standard, which is fully based on TI OMAP platform and compliant with ETSI TS 102 361 protocol. And all the functions can be totally customized.

 Optional functions of DMR portable radio DH-9800:
  • Vibration;
  • GPS;
  • Man Down;
  • Voice Recording (80H/160H)(optional).
We can offer API for second-development.
HQT TI OMAP Series digital handheld radios include DH-9800 and DH-9100(same with DH-9800 but without screen and keyboard).

Please contact our sales consultants for more product information. Get Support >>

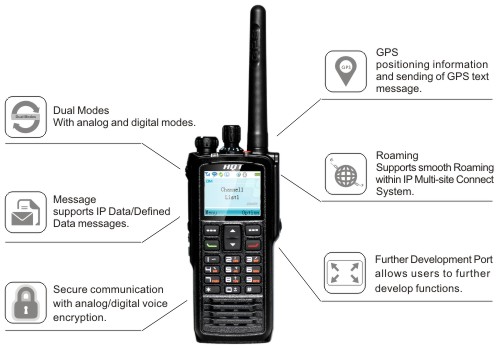

Dual Modes (Analog + Digital)
DH-9800 can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition.

Versatile Voice Calls
DH-9800 supports various voice call types, including Private Call, Group Call, All Call and Emergency Call.

Text Message
DH-9800 supports IP Data/Defined Data messages, including Private Message and Group Message.

Digital Signaling
DH-9800 supports various signaling, including Call Alert, Radio Check, Remote Monitor, Radio Disable and Radio Enable.

Vibrate (Optional)
This feature is helpful in reminding you of the reception of any Private Call, Call Alert or Text Message under noisy or low-volume conditions.

Various Analog Signaling Types
DH-9800 supports various analog signaling (DTMF, 2-Tone, 5-Tone, QDC-1200 and CDCSS/CTCSS), providing higher function expansion capacity.

Scan
DH-9800 supports scanning of analog voice and signaling, digital voice and data. It can also support mixed modes scanning.

IP Multi-site Connect and Roaming
DH-9800 supports communication with any other terminals as well as smooth Roaming within IP Multi-site Connect System.

Advanced Features (Optional)
DH-9800 supports various optional advanced features including Man Down, GPS and Voice Recording.

Privacy of Voice and Data
DH-9800 supports analog scrambling, and digital encryption using Advanced Encryption Standard (AES) and ARCFOUR (ARC4) encryption algorithm to voice with 256-bit encryption.

Upgrade to Tier-III
Customer can upgrade DH-9800's software to Tier-III without buying new devices.
General
Frequency Range VHF: 136-174MHz
UHF: 350-400MHz; 400-470MHz; 450-520MHz
Channel Capacity 1024 (64 Zones×16 Channels)
Zone Capacity 64
Channel Spacing 12.5kHz (Digital)  25/20/12.5kHz (Analog)
Operating Voltage 7.4V
Battery 2000mAh / 2500mAh (Optional)
Battery Life
(5-5-90 Duty Cycle, High TX Power)
Analog: Above 11 Hours
Digital: Above 15 Hours
Frequency Stability ±1.0ppm
Antenna Impedance 50Ω
Dimensions (H×W×D) 130×55×35mm
Weight 333g
LCD Display 1.8 Inch   TFT
Receiver
Sensitivity (Analog)   0.22μV (12dB SINAD) / 0.25μV (Typical) (12dB SINAD)
Sensitivity (Digital) 0.22μV/BER 5%
Selectivity   ≥60dB @ 12.5kHz / 70dB @ 20&25kHz
Intermodulation   ≥65dB
S/N 40dB @ 12.5kHz / 43dB @ 20kHz / 45dB @ 25kHz
Rated Audio Power Output 1.5W
Rated Audio Distortion ≤3%
Audio Response +1~-3dB
Conducted Spurious Emission <-57dBm
Transmitter
RF Power Output        UHF High Power: 4W/ Low Power: 1W
VHF High Power: 5W/ Low Power: 1W
FM Modulation 11KΦF3E @ 12.5kHz
14KΦF3E @ 20kHz
16KΦF3E @ 25kHz
4FSK Digital Modulation   12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission -36dBm(<1GHz) / -30dBm(>1GHz)
Modulation Limiting   2.5kHz @ 12.5kHz
4kHz @ 20kHz
5kHz @ 25kHz
FM Noise 40dB @ 12.5kHz / 43dB @ 20 kHz / 45dB @25kHz
Adjacent Channel Power 60dB @ 12.5kHz  70dB @ 20/25kHz
Audio Distortion ≤3%
Digital Vocoder Type AMBE3000++
Digital Protocol ETSI-TS102 361-1.-2.-3
Environmental Specifications
Operating Temperature -30℃~ +60℃
Storage Temperature -40℃~ +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)
U.S. Military Standard MIL-STD-810 C/D/E/F/G
Dust & Water Intrusion IP67 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G Standard

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.


Accessory List

Standard Accessories
Antenna Li-ion Battery Charge Adapter Desktop Charger Belt Clip Hand Strap
Optional Accessories
Earphone  Remote Microphone 2500mAh Battery Programming Cable Leather Case
