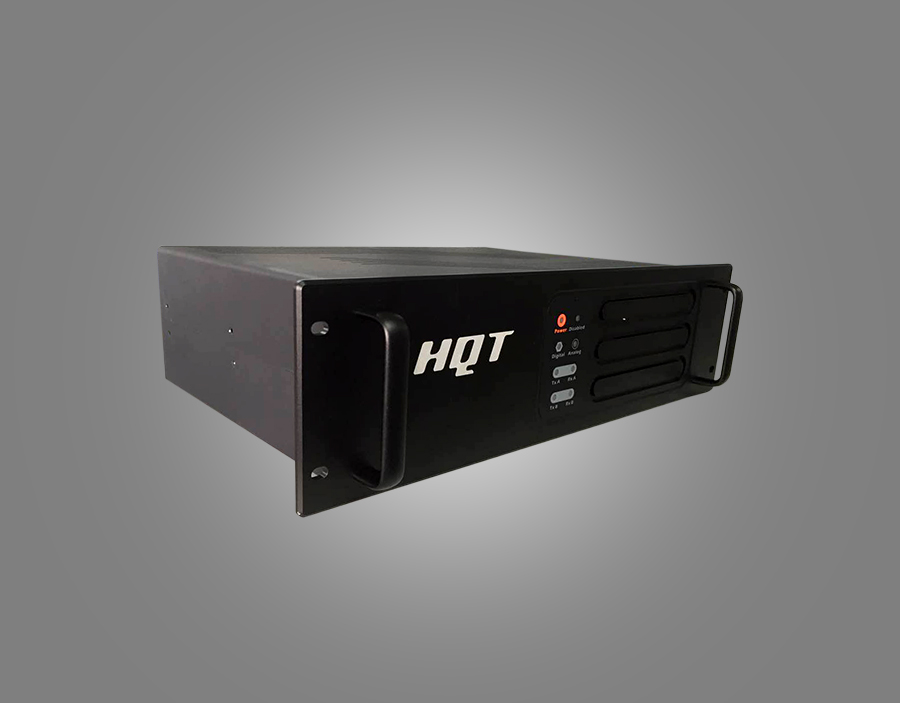

HQT TI OMAP SERIES DIGITAL REPEATER DR-9200

HQT DR-9200 is a high-end digital repeater, which is totally based on TI OMAP platform and compliant with ETSI TS 102 361 protocol. It has powerful functions and multiple purposes by integrating a variety of the best digital technologies of two-way radio and providing various application solutions. With totally customizable functions and features, we can offer API for second-development. It is the ideal communication solution for the market.
  • IP Multi-site Connect;
  • Support Trunking Extensions;
  • Adopt TDMA Digital Technologies;
  • Support Both Analog and Digital Modes.

Please contact our sales consultants for more product information. Get Support >>

Analog or Digital Mode
Operates in analog or digital mode – LED indication mode;

100% Continuous Full-duty Cycle at High Power

Integrated Power Supply

Multiple Installation Methods
DR-9200 is rack- or wall-mountable and can be put on a table/desk;

IP Multi-site Connect (Optional )
Digital solutions extend the coverage of DR-9200 communication system to the users located anywhere in the globe by Internet to greatly improve the customer service and productivity;


TDMA Technology
DR-9200 adopts TDMA technology which enables two channels to be used on the same radio frequency at the same time;

Trunking Expansion
DR-9200 supports expandable digital trunking solutions with single base station, which expands its communication capacity to more than 1,000 two-way radio users without adding new frequencies;

More Secure Communication
With advanced digital technologies, DR-9200 can provide not only common encryption for analog radios, but also more advanced digital encryptions to ensure more private communications;

Customizable
DR-9200 allows developing and customizing applications for users to meet various and specific requirements;

General
Frequency Range UHF: 400-470MHz
VHF: 136-174MHz
Channel Capacity 16
Operating Voltage AC 110~240V 50/60Hz
Channel Spacing 25kHz/20kHz/12.5kHz
Antenna Impedance 50Ω
Dimensions (H×W×L) 132.5×482.5×296.5mm
Current Drain (Standby) <0.9A
Current Drain (Transmit) <12A
Receiver
Analog Sensitivity 0.22μV (12dB SINAD)
0.25μV (Typical) (12dB SINAD)
0.3μV (20dB SINAD)
Digital Sensitivity 0.25μV/BER 5%
Adjacent Channel Selectivity 65dB
Intermodulation 70dB
Spurious Response Rejection 80dB
Blocking 90dB
Conducted Spurious Emission ≤-57dBm
Audio Distortion ≤3%
Audio Response +1~-3dB
Transmitter
Tx Power Output   UHF High Power:45W / Low: 25W
VHF High Power:50W / Low: 25W
Modulation Limiting 2.5kHz @ 12.5kHz
4.0kHz @ 20kHz
5.0kHz @ 25kHz
Conducted/Radiated Emission <-36dBm (<1GHz) / <-30dBm (>1GHz)
Adjacent Channel Power 60dB @ 12.5kHz
70dB @ 20/25kHz
Audio Response +1~-3dB
Audio Distortion ≤3%
Frequency Stability ±1.0ppm
FM Modulation 11KΦF3E @ 12.5kHz
14KΦF3E @ 20kHz
16KΦF3E @ 25kHz
4FSK Digital Modulation   12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
Digital Vocoder Type AMBE3000
Digital Protocol ETSI-TS 102 361-1
Environmental Specifications
Operating Temperature -30℃~ +60℃
Storage Temperature -40℃~ +85℃
ESD IEC 61000-4-2 (Level 4) ±8kV (Contact) ±15kV (Air)

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.


Accessory List

Standard Accessory Optional Accessory
Power Cable Antenna
