HQT IC Platform Series Q3D

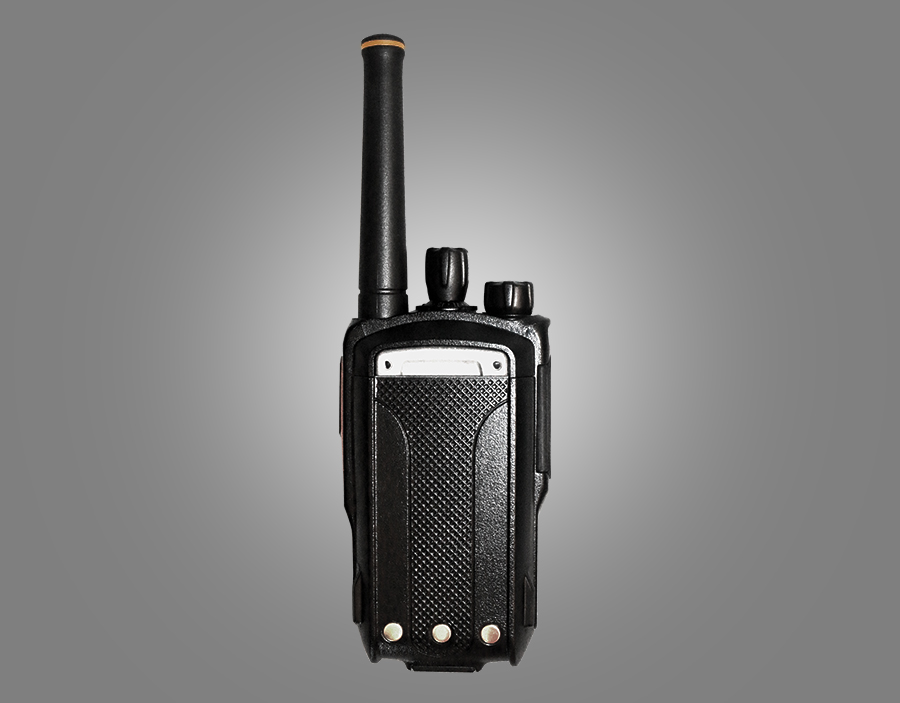

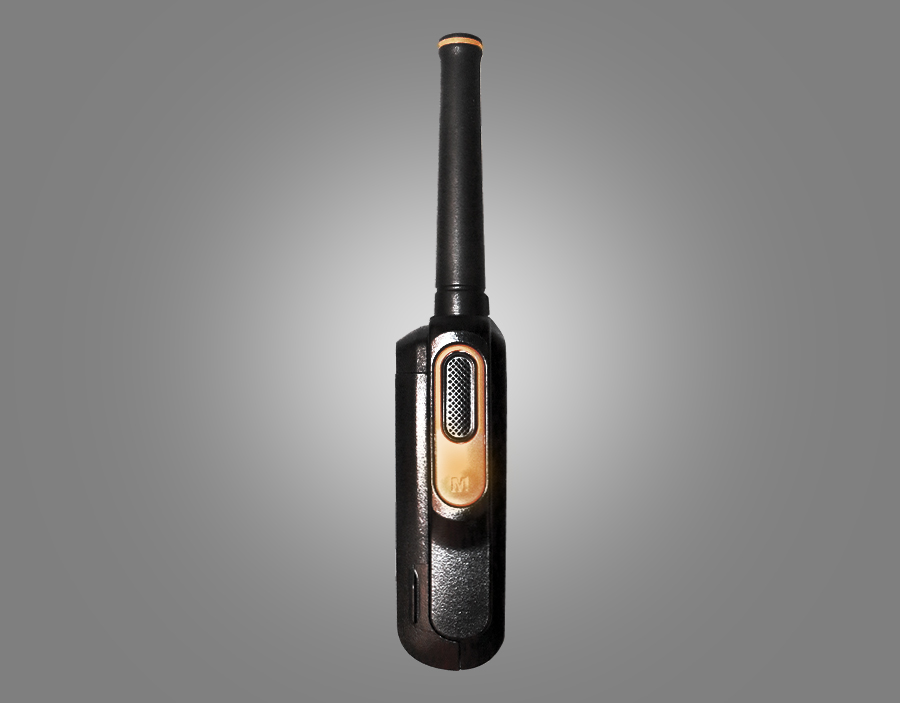

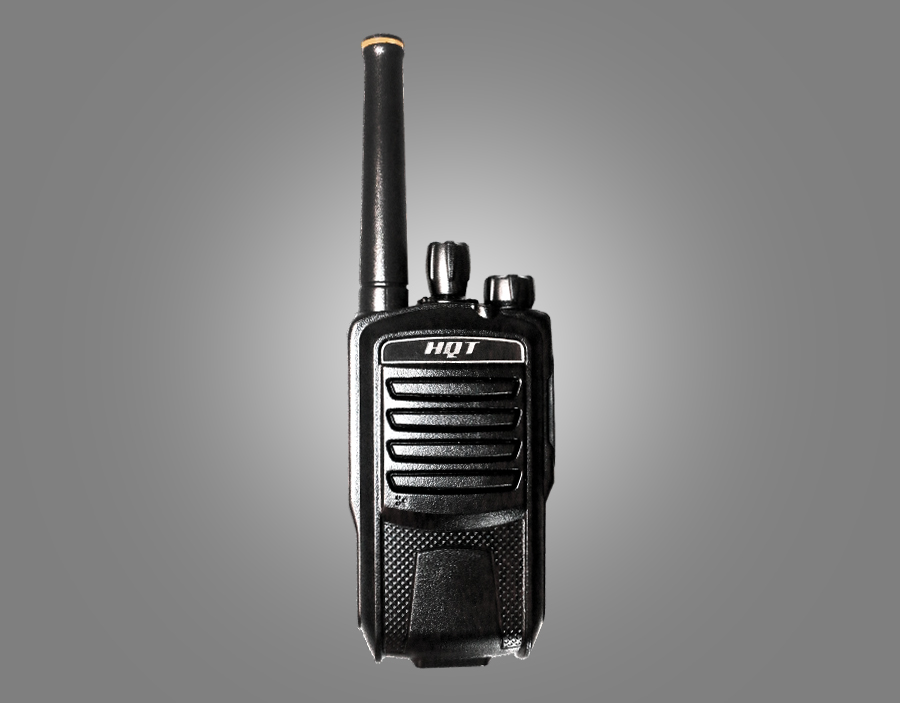

IC PLATFORM SERIES DIGITAL PORTABLE RADIO Q3D

HQT Q3D is a professional two-way radio with fashionable design, multi-functions, wide frequency range and stable performance. It is compliant with IP55 standard.

VOX;
Upgradeable Software;
Dual Modes (Analog+ Digital);
Signaling: DTMF Encode, QT/DQT;

Q3D is a mid-end digital portable radio with integrated chip, its customization is limited and it is applied in the commercial markets. If you have customized needs and requirements, HQT DH-9800/9100 is recommended.

Please contact our sales consultants for more product information. Get Support >>

Maximum Efficiency
Q3D adopts TDMA technology which ensures high-efficient frequency coverage and control mode of RF power, and its battery life is 40% longer when it is operated in digital mode than that in analog mode.
Better and Clearer Communication
Q3D adopts digital technologies which effectively control background noise and squelch during voice transmission, so that it can transmit clear and desired voice. The audio power output of Q3D is 1W with a 36mm-diameter speaker which enables users to hear the other side clearly even in noisy environments.
Secure Communication
Q3D can control the selection of RX contact or RX group of voice in digital mode. Every Q3D has a unique ID, which enables users to do one-to-one conversation which will not be received by others. Besides, it supports digital voice encryption in digital mode.
VOX;
Voice Prompts;
Channel Scan;
Emergency Alarm;
1 Programmable Key;
TOT (Time Out Timer);
Upgradeable Software;
BCL (Busy Channel Lockout);
Dual Modes (Analog+ Digital);
Signaling: DTMF Encode, QT/DQT;
Voice Call Types: Private Call, Group Call and All Call;
Radio Disable, Radio Enable, One Touch Call, Remote Monitor.

General
Frequency Range	VHF: 136-174MHz UHF: 400-470MHz;450-520MHz
Channel Capacity/Zone Capacity	1024(64 Zones×16 Channels)
Channel Spacing	25kHz/12.5kHz
Battery	1500mAh
Dust & Water Protection	IP55
Operating Temperature	-25℃~+60℃
Voltage	7.5V
Dimensions (H×W×D)	105×62×35mm
Weight	233g
Receiver
Sensitivity	Analog SINAD: 0.22μV/Digital 5%BER:0.22μV
Adjacent Channel Selectivity	60dB@12.5kHz / 70dB@25kHz
Intermodulation	65dB
Spurious Response Rejection	70dB
Hum and Noise	-40dB@12.5kHz /-45dB@25kHz
Conducted Spurious Emission	≤-57dBm
Audio Response	+1~-3dB
Audio Power Output	1W
Transmitter
RF Power	UHF High Power: 4W /Low Power: 1W VHF High Power:5W /Low Power:1W
Modulation Limiting	≤2.5kHz @ 12.5kHz ≤5kHz @ 25kHz
Conducted/Radiated Emission	≤-36dBm(<1GHz) / -30dBm(>1GHz)
Adjacent Channel Power	60dB @ 12.5kHz/70dB @ 25kHz
Audio Response	+1~-3dB
Audio Distortion	≤3%
Frequency Stability	±1.5ppm
FM Modulation	11KΦF3E @ 12.5kHz 16KΦF3E @ 25kHz
4FSK Digital Modulation	12.5kHz Data: 7K60F1D and 7K60FXD 12.5kHz Voice: 7K60F1E and 7K60FXE 12.5kHz Voice&Data: 7K60F1W
Digital Vocoder Type	AMBE+2^TM
Digital Protocol	ETSI TS102 361-1.-2.-3

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.

Accessory List

Standard Accessories
Antenna	Li-ion Battery	Charge Adapter	Desktop Charger	Belt Clip	Hand Strap
Optional Accessories
Earphone	2500mAh Battery	Remote Microphone	Programming Cable		Leather Case
